#50 Stainless Steel M-1 Attachment Connecting Link
#50 Stainless Steel M-1 Attachment Connecting Link



Contact Us For Pricing & Availability

Description Technical Specs

#50 Stainless Steel M-1 Attachment

This #50 Stainless Steel M-1 Attachment Connecting Link is manufactured for #50 stainless steel roller chain and fully meets and exceeds ANSI Standards. M-1 Stainless Steel Attachments are a standard straight, two sides, one hole attachment that is found in a wide range of applications. We can supply #50 stainless steel roller chain with M-1 attachments assembled in any configuration needed at a great price and in a short lead time!

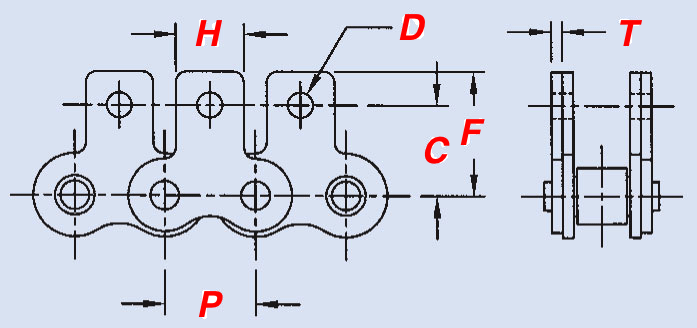

Dimensions:

  • ANSI Size: 50SS-M-1
  • Pitch (P): 0.625"
  • From Hole C.L To Pin C.L. (C): 0.625"
  • Hole Diameter (D): 0.203"
  • From Top To Pin C.L. (F): 0.963"
  • Extension Width (H): 0.562"
  • Thickness (T): 0.079"

Phone: (407) 347-3519
Email: [email protected]
About Us
Features
    • High Quality
    • Meets And Exceeds ANSI Standards
    • Manufactured Out Of 304-Grade Stainless Steel
    • Extremely Resistant To Corrosion
    • Straight, Two Side, One Hole
    • Will Operate In Low And High Temperatures
