05B Stainless Steel Roller Chain - 10ft Box
05B Stainless Steel Roller Chain



Contact Us For Pricing & Availability

Description Technical Specs

05B Stainless Steel Roller Chain

05B British Standard Metric Stainless Steel Roller Chain is constructed entirely of premium quality 304-grade stainless steel. This stainless steel roller chain is commonly stock in 10ft boxes including one connecting link per box. However, larger reels or specific lengths are available upon request. This roller chain fully meets all ISO British Standards and is a high quality, corrosion resistant, and durable stainless steel roller chain. Some of the benefits of using 304-grade stainless steel are that it is highly resistant to corrosion, chemicals, and harsh environments. This is a high performance and high precision stainless steel roller chain that is manufactured to specific ISO standards. Don't hesitate to give us a call if you have any questions or need any additional information.

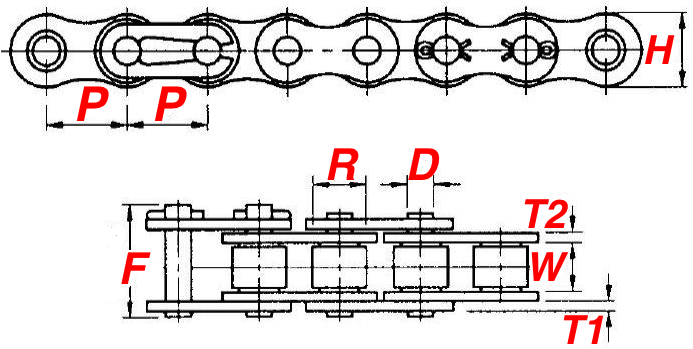

Dimensions:

  • Chain Size: 05BSS
  • Pitch (P): 0.315"
  • Roller Width (W): 0.118"
  • Roller Diameter (R): 0.196"
  • Link Plate Height (H): 0.265"
  • Link Plate Thickness (T1): 0.031"
  • Link Plate Thickness (T2): 0.031"
  • Pin Diameter (D): 0.090"
  • Overall Chain Width (F): 0.310"
  • Chain Weight: 0.11 lbs/ft
  • Specifications Met: ISO British Standards

Phone: (407) 347-3519
Email: [email protected]
Features
    • Size: 05B Stainless Steel Roller Chain
    • High Quality Stainless Steel Roller Chain
    • Metric/ British Standard
    • Constructed of High Quality 304 Grade Stainless Steel
    • Extreme Resistance to Corrosion
    • Increased Durability
    • High Precision
    • Will Operate in low & High Temperature Applications
    • One Connecting Link Included per 10ft Box
    • Fully Meets All ISO British Standards
